Type：corrosion-resistant thermocouple for high temperature
Illustrate：Application It is widely used to measure temperature during production process with high temperature and corrosion in petrochemical metallurgy, glass and ceramic industries.

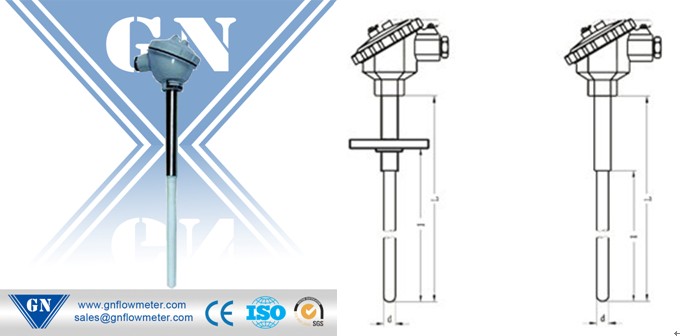

Corrosion-resistant Thermocouple for High Temperature
Application
It is widely used to measure temperature during production process with high temperature and corrosion in petrochemical metallurgy, glass and ceramic industries.
Main Technical Parameters
Electric outlet: M20X1.5, NPT1/2
Accuracy Class: 1、Ⅱ
Protection Class: IP65
Type & Specification
| Type | Graduation |
Measuring Range |
Protection Tube Material |
Thermal Response Time |
Specification | |
| WRPF-130G | S | 0~1300 | 3YC52 | less than 80S | d | Lx1 |
| WRP2F-131G | ∮16 | 300x150 | ||||
| WRHF-130G | R | 0~1300 | 350x200 | |||
| WRH2F-131G | 400x250 | |||||
| WRHF-130G | B | 0~1600 | MoSi2 | 450x300 | ||
| WRH2F-130G | 500x350 | |||||
| WRPF-430G | S | 0~1300 | 3YC52 | 550x400 | ||
| WRP2F-430G | 600x450 | |||||
| WRHF-430G | R | 0~1300 | 650x500 | |||
| WRH2F-430G | 750x600 | |||||
| WRRF-430G | B | 0~1600 | MoSi2 | 1000x850 | ||
| WRR2F-430G | ||||||
