Type：CL80A/CL80B Chlorine Controller
Illustrate：CL80A/CL80B Chlorine controller used in drinking water treatment plants, drinking water distribution network, a swimming pool.

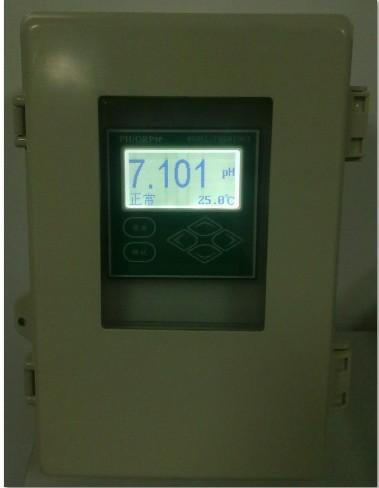

CL80A/CL80B Chlorine Controller
1 Overview:
CL80A/CL80B Chlorine controller used in drinking water treatment plants, drinking water distribution network, a swimming pool.
2 The structure features:
Measurement system consists of CL80A/CL80B controller, chlorine electrode, pH
electrode (automatic pH compensation) of three parts parts.Electrode contact with the tested solution, instrument displays the value of aqueous solution ofchlorine, pH, temperature and working state.
3 Technique features:
Measuring range Chlorine set free 0 20.00mg/L ppm
Temperature 0 60
2 Resolution Chlorine 0.001mg/L Temperature 0.1
3 The temperature compensation range 0 60 Reference TEMP 25
4 The pH compensation range 6 9pH
5 Response time < 2min (90% 20 )
6 Minimum flow 15cm3/S constant velocity
7 The stability <2%F·S every month(normal temperature and normal pressure)
8 Current output 0 10mA(load resistance 1.5KO)
4 20mA(load resistance 750O)
9 Two group of alarm relay 3A 240VAC 6A 28VDC 120VAC
10 power supply 220VAC±10%,50±1Hz
11 The dimension 96×96×130mm
12 Installation way panel installation
The tapping size of electronic unit 91×91mm
13 The electronic unit weight 0.6kg
14 Operating conditions a) Ambient temperature 10 60 ;b) Relative humidity no bigger than90% c)There are no corrosive gas around d)There are no other magnetic fields or electromagnetic fields which produce the negative effect except the earth magnetic field.
4 The installation of meter
4.1 The controller shall be installed where it is clean, dry and well-ventilated and there is no vibration, no corrosive gas or steam. Some space shall be left around the meter for the convenience of the operation and overhaul. The meter shall be as close as possible to the sampling point for ease of pipe and electric connection. The meter shall be close to the sensor for the ease of calibration. See the diagram 1 for size: 91mm * 91mm.
diagram 1 hole-tapping size
5. Whole set
1 Overview:
CL80A/CL80B Chlorine controller used in drinking water treatment plants, drinking water distribution network, a swimming pool.
2 The structure features:
Measurement system consists of CL80A/CL80B controller, chlorine electrode, pH
electrode (automatic pH compensation) of three parts parts.Electrode contact with the tested solution, instrument displays the value of aqueous solution ofchlorine, pH, temperature and working state.
3 Technique features:
Measuring range Chlorine set free 0 20.00mg/L ppm
Temperature 0 60
2 Resolution Chlorine 0.001mg/L Temperature 0.1
3 The temperature compensation range 0 60 Reference TEMP 25
4 The pH compensation range 6 9pH
5 Response time < 2min (90% 20 )
6 Minimum flow 15cm3/S constant velocity
7 The stability <2%F·S every month(normal temperature and normal pressure)
8 Current output 0 10mA(load resistance 1.5KO)
4 20mA(load resistance 750O)
9 Two group of alarm relay 3A 240VAC 6A 28VDC 120VAC
10 power supply 220VAC±10%,50±1Hz
11 The dimension 96×96×130mm
12 Installation way panel installation
The tapping size of electronic unit 91×91mm
13 The electronic unit weight 0.6kg
14 Operating conditions a) Ambient temperature 10 60 ;b) Relative humidity no bigger than90% c)There are no corrosive gas around d)There are no other magnetic fields or electromagnetic fields which produce the negative effect except the earth magnetic field.
4 The installation of meter
4.1 The controller shall be installed where it is clean, dry and well-ventilated and there is no vibration, no corrosive gas or steam. Some space shall be left around the meter for the convenience of the operation and overhaul. The meter shall be as close as possible to the sampling point for ease of pipe and electric connection. The meter shall be close to the sensor for the ease of calibration. See the diagram 1 for size: 91mm * 91mm.
diagram 1 hole-tapping size
5. Whole set
| CL80A/CL80B Chlorine Controller | 1 |
| Chlorine electrode | 1 |
| pH electrode | 1 |

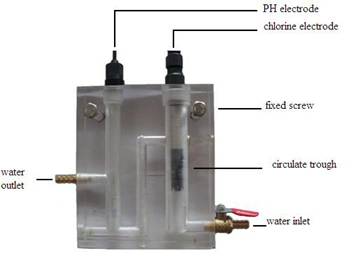

| Measurement of circulation tank | 1 |
| Install bracket | 2 |
| User manual | 1 |
