Type：Test online industry pH analyzer
Illustrate：Brief introduction Of Online Industry pH analyzer 1.CX-IPH-1205 series of microcomputer-based industrial control instruments are precision meters for measurement of PH value of solution. 2.With complete functions, stable performance, simple operat..
Brief introduction Of Online Industry pH analyzer
1.CX-IPH-1205 series of microcomputer-based industrial control instruments are precision meters for measurement of PH value of solution.
2.With complete functions, stable performance, simple operation and other advantages, they are optimal instruments for industrial measurement and control of PH value.
3.The advantages of these instruments include: LCD display with back light and display of errors; automatic temperature compensation; two-point calibration; isolated 4-20mA current output; dual relay control; adjustable delay; alarming with upper and lower thresholds; power-down memory and over ten years of data storage without backup battery
Various PH electrodes can be used in CX-IPH-1205 series of instruments.
Main features
1.US T1 chips; 96 x 96 world-class shell.
2.world-famous brands for 90% partsIsolated protection output by means of photocoupler
3.No interference between input and output signalsEEPROM memory.
4.Backup battery not required and no data loss after power-off.
5.High-performance operational amplifier; symmetrical ORP positive and negative values; low temperature drift;high stability and accuracy.
Main parameters

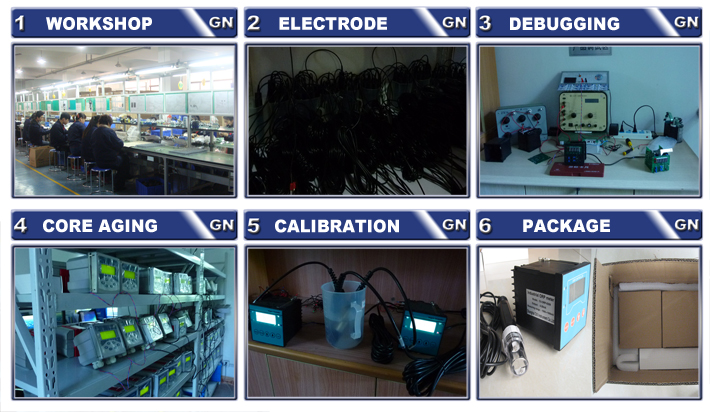

Workshop
1.CX-IPH-1205 series of microcomputer-based industrial control instruments are precision meters for measurement of PH value of solution.
2.With complete functions, stable performance, simple operation and other advantages, they are optimal instruments for industrial measurement and control of PH value.
3.The advantages of these instruments include: LCD display with back light and display of errors; automatic temperature compensation; two-point calibration; isolated 4-20mA current output; dual relay control; adjustable delay; alarming with upper and lower thresholds; power-down memory and over ten years of data storage without backup battery
Various PH electrodes can be used in CX-IPH-1205 series of instruments.
Main features
1.US T1 chips; 96 x 96 world-class shell.
2.world-famous brands for 90% partsIsolated protection output by means of photocoupler
3.No interference between input and output signalsEEPROM memory.
4.Backup battery not required and no data loss after power-off.
5.High-performance operational amplifier; symmetrical ORP positive and negative values; low temperature drift;high stability and accuracy.
Main parameters
| Measuring range | PH: -4.00~18.00 mV: -l999~ +1999mv |
| Resolution | 0.01 PH l mV |
| Accuracy | 0.05 |
| Action control | two sets of On/Off relays |
| Relay delay | adjustable |
| Analog output | 4-20mA isolated protection output |
| Protection grad | P54 |
| Overall dimension | 96 x 96 x 135mm |
| Dimension of the hole | 92 x 92 mm |
| Weight | 1.0kg |
Workshop
