Type：CX-PT-3051 single flange pressure transmitter
Illustrate： Single flange pressure transmitter is widely used for measuring differential pressure (or pressure), level, density of liquid, gas or steam and convert the value of above into current signal output or digital protocol output.
CX-PT-3051 Single Flange Pressure Transmitter
- Widely used for measuring differential pressure (or pressure), level, density of liquid, gas or steam and convert the value of above into current signal output or digital protocol output.
- The pressures are directly applied to the isolating diaphragm that provide isolation and resistance against process fluid corrosion.
- Being microprocessor based, the electronic circuit is extremely versatile and accurate.
- Combined with the sensor precision, it provides the high accuracy and range ability.
- Transmitter performance is improved by continuous monitoring of the sensor temperature and corresponding corrections.
- A local display permits easy reading and writing of data.
Main Parameters
| Medium | liquid, gas and steam | |
| Measuring Range | 0~0.1kPa to 0~40MPa | |
| Output | 4~20mA DC+HART protocol | |
| Accuracy | ±0.1%FS | |
| Range and null point | Adjustable | |
| Power Supply | 12~45V DC, generally 24V DC | |
| Protection | IP65 | |
| Storage Temperature | -40℃～+125℃ | |
| Overload Limit | 150%-200% ofrated range | |
| Load Resistance | ≯750Ω(See below diagram 1 for load characteristic ) | |
| Relative Humidity | 5~95% | |
| Converter housing | Low copper cast aluminum alloy with Polyurethane paint | |
| Fill Fluid | Silicon / Fluorine Oil | |
| Process Connections | 1/2NPT, 1/4NPT | |
| Static pressure | 4, 10, 25, 32Mpa | |
| Mounting | Directly supported by piping or optionally with mounting bracket for 2" pipes or with direct or remote seals. 3-way valve | |
| Maximum positive shift | 500% of minimum adjusting span | |
| maximum negative shift | 600% of minimum adjusting span | |
| Material | Flange/Adaptor | Stainless Steel 316/Monel/ Haste alloy/Carton Steel |
| Drains/Vents | Stainless Steel 316/Monel / Haste alloy | |
| Diagrams | Stainless Steel 316/Monel /Haste alloy C/ Tantalum | |
| Wetted O-Ring | Viton/ Buna-N | |
| Seal O-Ring | Viton/ Buna-N | |
| Bolts & Nuts | Carton Steel/Stainless Steel316 | |

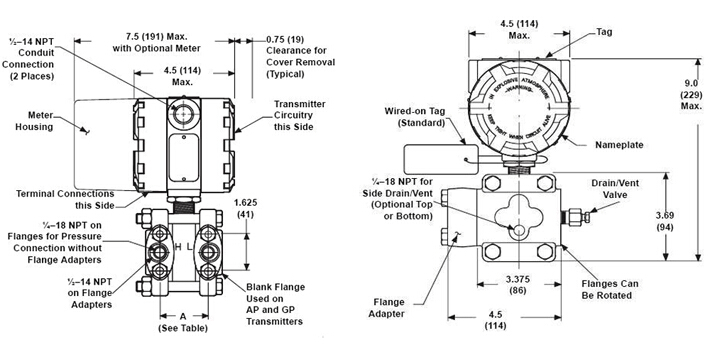

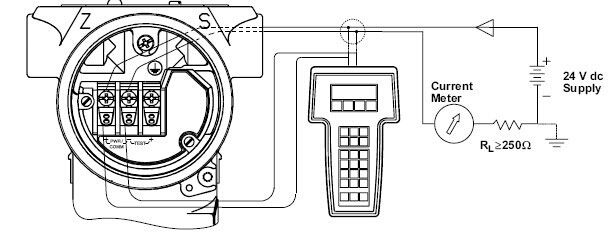

Wiring Diagrams
Connect the bench equipment as shown in Figure, and turn on the HART-based communicator by pressing the ON/OFF key. The communicator will search for a HART-compatible device and will indicate when the connection is made. If the communicator fails to connect, it will indicate that no device was found.
