Type：CX-ULM-AX ultrasonic large scale level meter
Illustrate：Ultrasonic large scale level measuring instrument is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
CX-ULM-AX Ultrasonic large scale level meter
General information
Ultrasonic large scale level measuring instrument is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics or aluminum, is small and firm with PP probe. It is applicable for various fields concerning level measuring and monitoring.
ApplicationsSedimentation pool Coal washing process
Wastewater treatment
Mortar sedimentation
Specifications
Sense range：1～30m blind area：< 1m
Mini display resolution：1mm
precision：±0.3%×FS
temperature compensation：auto
Work frequency ：20 KHz～43.0KHz
Calibration ：
analog output：0～20mA；4～20mA
load impendence>300Ω；0～5V；1～5V
digital output：RS48（Modbus）
two NPN output
Work voltage： DC12—24V or AC220V
Power consumption<1.5W
dimension：φ110mm×300mm×180 flange
material ：aluminum or ABS
weight：1326g for sensor
installation：180X145X20 flange
admission cable：1.5m×φ10mm
protection degree：IP65
temperature： －10℃～60℃
humidity：0～95%

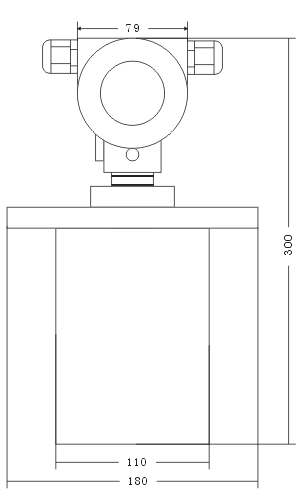

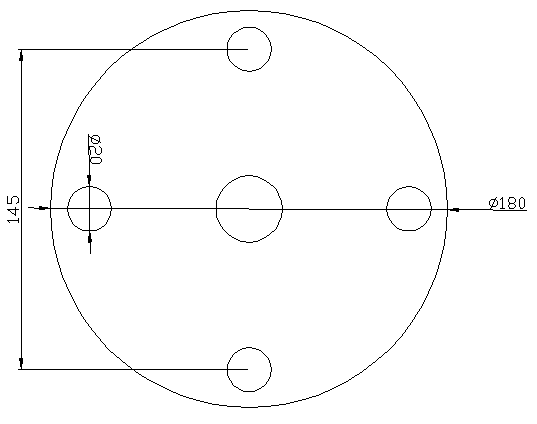

factory or onsite Flange dimension Dimension
