Type：CX-ULM-RJFG separate wall hanging multi-function ultrasonic muddy water interface meter
Illustrate：CX-ULM-RJFG ultrasonic interface meter is specialized for the online continuous observation and measurement of sewage interface in sewage treatment.
CX-ULM-RJFG Separate wall hanging multi-function ultrasonic muddy water interface meter
◆The main function characteristics:
CX-ULM-RJFG ultrasonic interface meter is specialized for the online continuous observation and measurement of sewage interface in sewage treatment. The device applied reliable ultrasonic echo measurement theory to measure the distance between the probe and the surface of sewage, it realized the instantaneous observation, measurement and control of the changing surface height of sewage, therefore an optimized mudd emission control and feeding control can be realized and to prevent effluent deterioration etc.
This meter applied the original GN floating mudd echo identification technology and real temperature compensation technology, so as to keep measurement accurate and precise with long term stability; It combines complete measurement, control, signal transmission and man-machine communication function. This meter integrates ultrasonic receive and send sensor, service circuit, temp compensation sensor and compensate circuit unit, display and control signal output and serial signal or analog quantity output unit(optional)
◆The main technical indexes:
liquid level measurement range:：5m***（accord with contract）
Level precision:Better than 0.5% F.S (at times, and the blind process ℃)
Probe blind area:≤5%F.S（atF0~FS）
baud beam angle:18°±2°
Operation frequency:50kHz～200kHz（varies from different supporting sensors）
Output signal:4 ~ 20 mA +RS485
Device operation parameters：
Display：LCD multi info+backlight display
Display resolution ratio：d=1mm/1cm（setting by customer）
keyboard：buttom
operation temperature：0℃～50℃ ；storage temp：- 20℃～70℃
operation humidity：≤80％RH No condensation of moisture（device）
storage humidity：≤70％RH No condensation of moisture（device）
Operation power voltage：AC220V/50Hz
Sensor operation parameter：
Applied medium：muddy water surface（comfirm when order）；operation temperature：0℃~40℃
Draught line depth：≥500mm
Sensor down-lead：10m
Shelter level：IP68

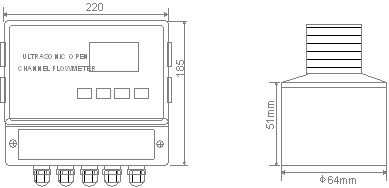

Mounting model: wall hanging; screw mounting
