Type：CX-FM fuel consumption flow meter(fuel counter)
Illustrate： Fuel consumption flow meter(fuel counter) 1) Total anti-theft oil 2) Water proof and anti-vibration 3) 360 degree ratation for counter and easy reading ,easy installation. 4) Working life can more 8 years. 5) it's our national product in China.

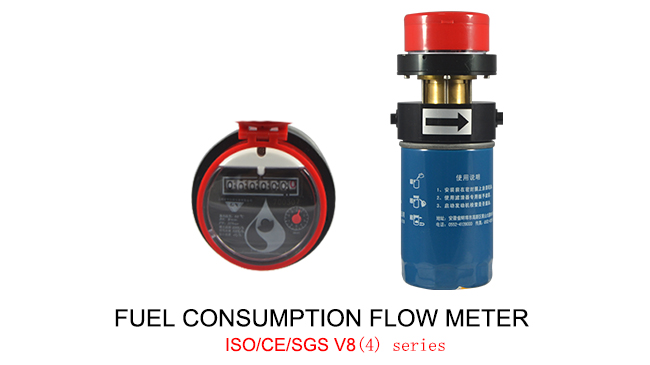

CX-FM Fuel consumption flow meter(fuel counter).
1)It’s the best fuel consumption flow meter (fuel counter) to manage fuel consumption. The accuracy is better than 1%.
2)It’s our patent product and certificate is issued by State Intellectual Property Office.
3)We are the leading manufacturer of Fuel consumption flow meter(fuel counter) in China.
4)Monitor fuel consumption in modern way by connection with GPS.
5)The working temp is from -40C to 80C

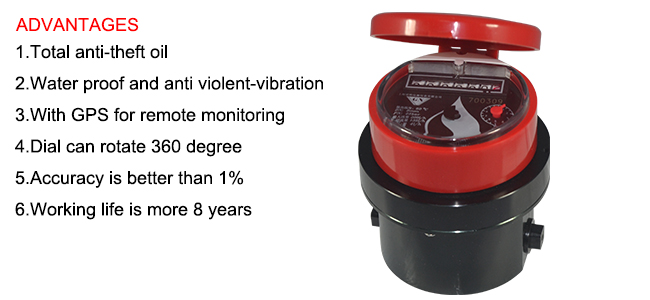

Below is advantages of fuel consumption flow meter (fuel counter)
1) Total anti-theft oil
2) Water proof and anti-vibration
3) 360 degree ratation for counter and easy reading ,easy installation.
4) Working life can more 8 years.
5) it's our national product in China.

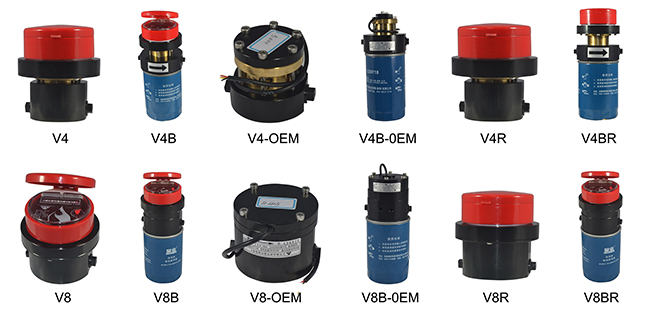

Below is mainly technical parameters for fuel consumption flow meter (fuel counter)
|
Model |
Mechanical counter |
Filter |
Pulse |
Flow range |
Accuracy |
Thread |
Pressure |
|
V4 |
YES |
NO |
NO |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4B |
YES |
YES |
NO |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4B-OEM |
NO |
YES |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4-OEM |
NO |
NO |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4R |
YES |
NO |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4BR |
YES |
YES |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V8 |
YES |
NO |
NO |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8B |
YES |
YES |
NO |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8B-OEM |
NO |
YES |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8-OEM |
NO |
NO |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8R |
YES |
NO |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8BR |
YES |
YES |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V15H-800-OEM |
NO |
NO |
YES |
10-600L/H |
1% |
M14*1.5 |
32bar |
NOTE:pls refer to same series fuel counter for more big flow range .
Pulse parameters
|
Model |
pulse equivalent |
Min flow |
Frequency(HZ) |
Pulse with(S) |
Max flow |
Frequency(ZH) |
Pulse with(S) |
|
V4 OEM |
200P/L |
1L/H |
0.055000 |
18.00 |
80L/H |
4.444000 |
0.23 |
|
V4R-reed switch |
2P/L |
1L/H |
0.000550 |
1800.00 |
80L/H |
0.044440 |
22.50 |
|
V4R-hall |
1P/L |
1L/H |
0.000270 |
3600.00 |
80L/H |
0.022220 |
45.00 |
|
V4BR-reed switch |
2P/L |
1L/H |
0.000550 |
1800.00 |
80L/H |
0.044440 |
22.50 |
|
V4BR-hall |
1P/L |
1L/H |
0.000027 |
3600.00 |
80L/H |
0.022220 |
45.00 |
|
V8 OEM |
80P/L |
4L/H |
0.088800 |
11.25 |
200L/H |
4.444000 |
0.23 |
|
V8R-reed switch |
2P/L |
4L/H |
0.000550 |
1800.00 |
200L/H |
0.044440 |
22.50 |
|
V8R-hall |
1P/L |
4L/H |
0.000027 |
3600.00 |
200L/H |
0.022220 |
45.00 |
|
V8BR-reed switch |
2P/L |
4L/H |
0.000550 |
1800.00 |
200L/H |
0.044440 |
22.50 |
|
V8BR-hall |
1P/L |
4L/H |
0.000027 |
3600.00 |
200L/H |
0.022220 |
45.00 |

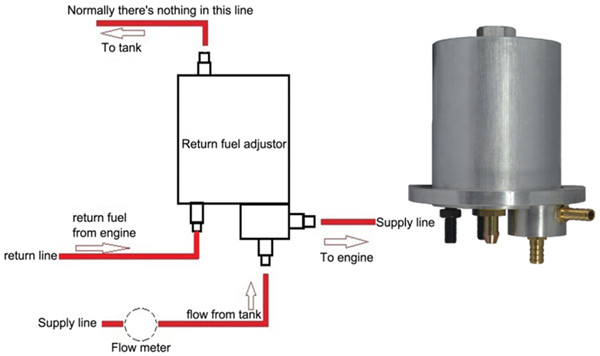

Fuel adjustor for directly measurement.
1)Ensure direct measurement accuracte, easy and safe.
2)It has function same aire elimilator.
3)Pulsation will disappear when fuel goes through the adjustor.
4)The pressure in return line will be zero with the adjustor.
5) it's invented by our engineer and special to match with our fuel consumption flow meter(fuel counter).
Mainly application for fuel consumption flow meter (fuel counter)
Usually, V4 series is suitable for engines less than 200KW and V8 series is suitable for engines from 200KW to 500KW. They are widely used for various engines such as vehicles, boats, generators, construction machine, burner, boiler, localmotive etc.

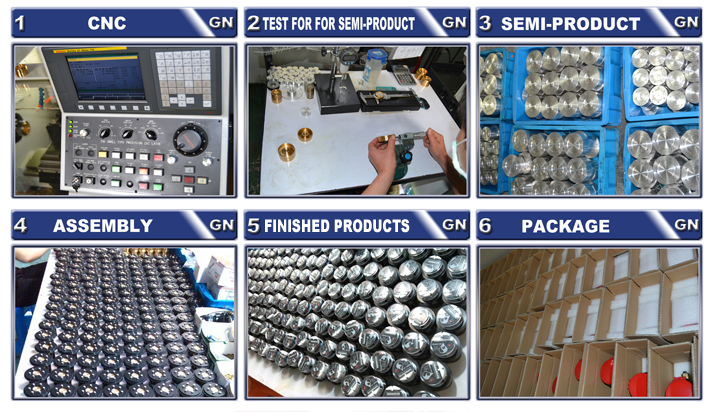

This is simple production line for fuel consumption flow meter(fuel counter).

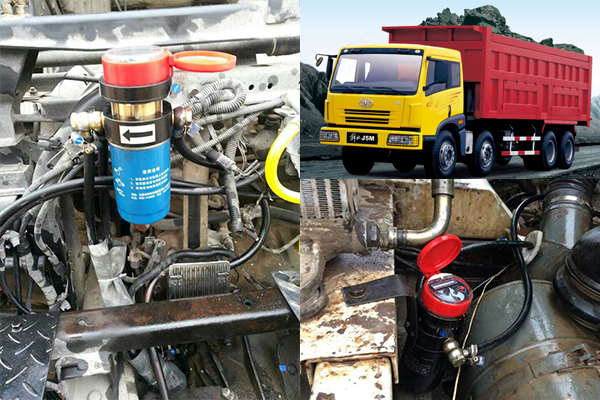

Belowo Installation sample for fuel consumption flow meter(fuel counter).
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
