Type：armored thermal resistance
Illustrate：The insulation resistance between electrode and protection tube of armored thermal resistance shall be no less than 100MΩ under condition that environment temperature 15-35℃ ,relative humidity is no more than 80% ,and testing voltage is D.C. 10-100V.
Armored Thermal Resistance
It is usually connected with display meter ,recording meter and computer, etc . to directly measure temperature of liquid ,vapor,
gas and solid surface ranging from -200℃ to 500℃ during various production process .
Features
1, With quick thermal response , reducing dynamic error
2, Small diameter , no limit length
3, High measuring accuracy
4, Imported film resistor with high reliability and stability
Operation Theory
It is based on that temperature change of material results in change of its resistance .When resistance value changes .
the working instrument will display relevant temperature .
Main Technical Parameters
Executive Standard
IEC751
BJ/T8622-1997
Filament Diameter& Material
| Filament | Simplex | duplex |
| Tube Diameter | Φ3Φ4Φ5Φ6Φ8 | Φ4Φ5Φ6Φ8 |
| Tube material | 1Cr 18Ni 9 Ti | 1Cr 18Ni 9 Ti |
Insulation Resistance at Normal Temperature
The insulation resistance between electrode and protection tube of armored thermal resistance shall be no less than 100MΩ under condition that environment temperature 15-35℃ ,relative humidity is no more than 80% ,and testing voltage is D.C. 10-100V.
Measuring Range & Tolerance
| Type | Graduation | Measuring Range℃ | Accuracy | Tolerance |
| WZPK | Pt100 | -200~500 | Class A | +/-(0.15+0.002ltl) |
| Class B | +/-(0.30+0.005ltl) |
Thermal Response Time
| Sleeve Tube Diameter | Thermal Response Time |
| Φ3 | <3 |
| Φ4 | <5 |
| Φ5 | <8 |
| Φ6 | <12 |
| Φ8 | <15 |

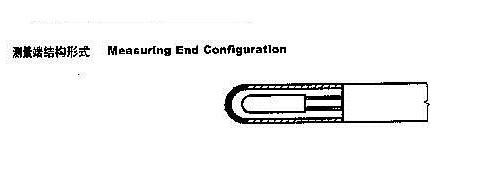

Measuring and Configuration

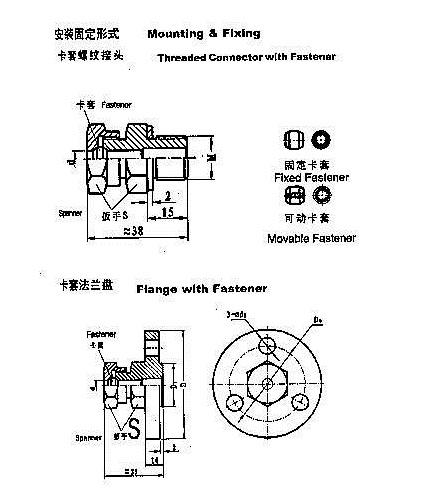

Mounting & Fixing
Threaded connector with Fastener
| Code & Size | Outer Diameter of Armored Thermal Resistance | |
| Φ8Φ6Φ5 | Φ4Φ3 | |
| M | Code &Size | M12*1.5 |
| S | 22 | 19 |
| Code &Size | Outer Diameter of Armored Thermal Resistance | |
| Φ8Φ6Φ5 | Φ4Φ3 | |
| D | Φ60 | Φ50 |
| D0 | Φ42 | Φ36 |
| D1 | Φ24 | Φ20 |
| S | Φ22 | Φ19 |
| d0 | Φ9 | Φ7 |

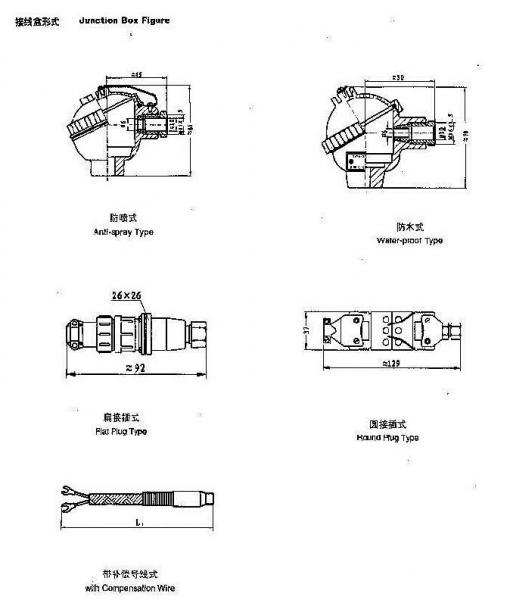

Junction box figure: anti-spray, water-proof type, flat plug type, round plug type, with compensation type
Type naming method
| W | W Temperature instrument | |||||||
|
|
Z | Thermal resistance | ||||||
|
|
P | Thermal element materials | ||||||
|
|
K | Armored type | ||||||
| Filament | ||||||||
| Blank | simplex | |||||||
| 2 | Duplex | |||||||
| Mounting &fixing | ||||||||
| 1 | Without fixing device | |||||||
| 2 | threaded head with fixed fastener | |||||||
| 3 | threaded head with movable fastener | |||||||
| 4 | flange with fixed fastener | |||||||
| 5 | flange with movable fastener | |||||||
| junction box type | ||||||||
| 2 | Anti-spray type | |||||||
| 3 | Water-proof type | |||||||
| 6 | round plug type | |||||||
| 7 | flat plug type | |||||||
| 9 | with compensation wire | |||||||
|
|
Diameter | |||||||
| 3 | Φ3 | |||||||
| 4 | Φ4 | |||||||
| 5 | Φ5 | |||||||
| 6 | Φ6 | |||||||
| 8 | Φ8 | |||||||
| W | Z | P | K | 2 | 2 | 3 | 8 | Model example |
